FLEX - Thermal Inkjet Printer

FLEX - Thermal Inkjet Printer

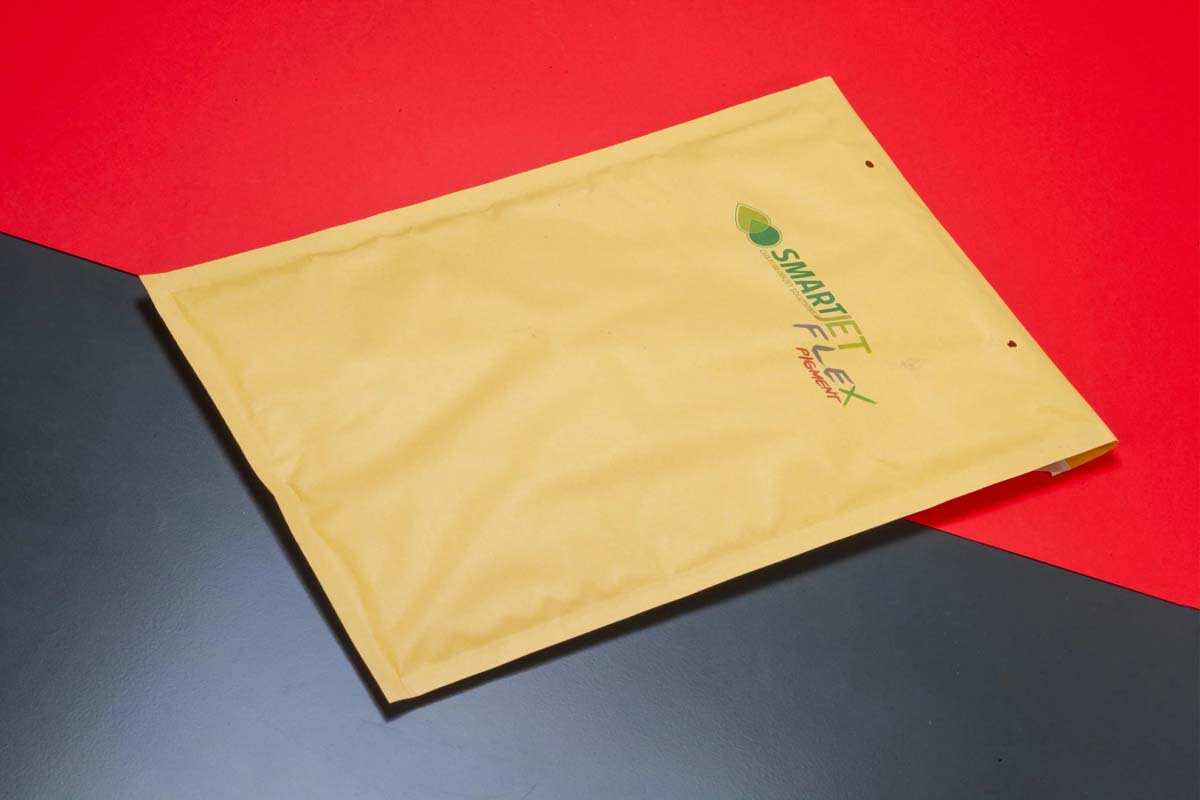

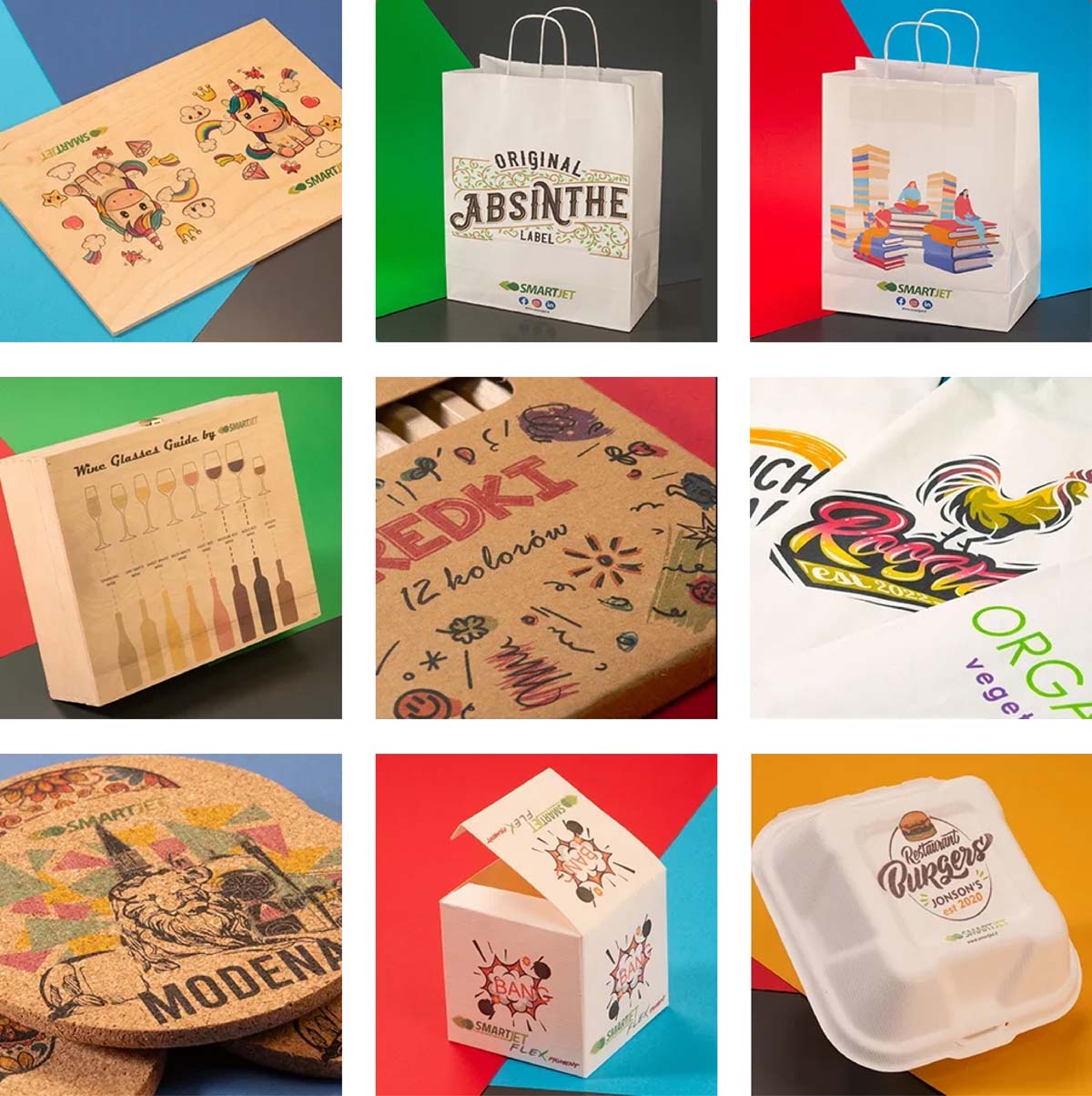

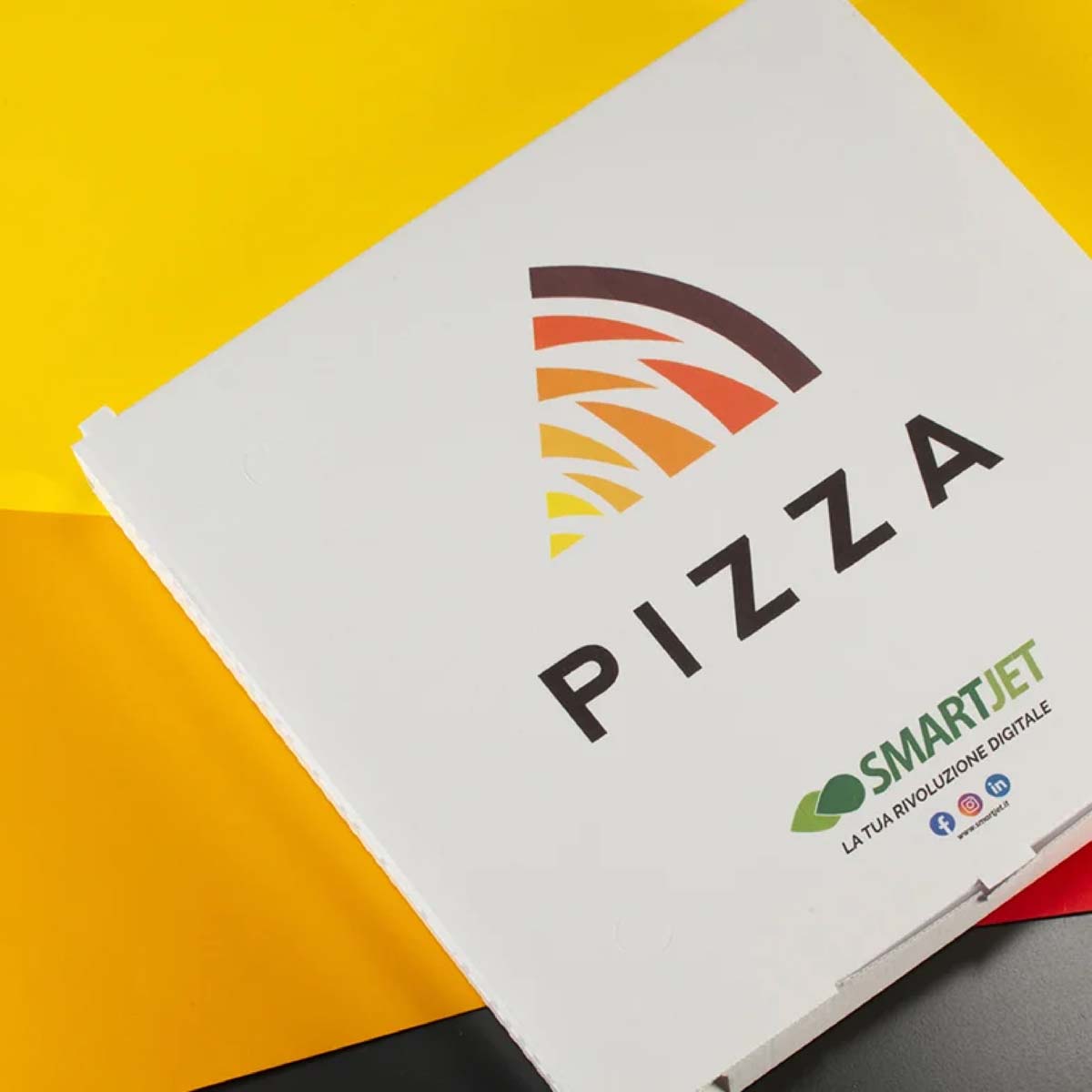

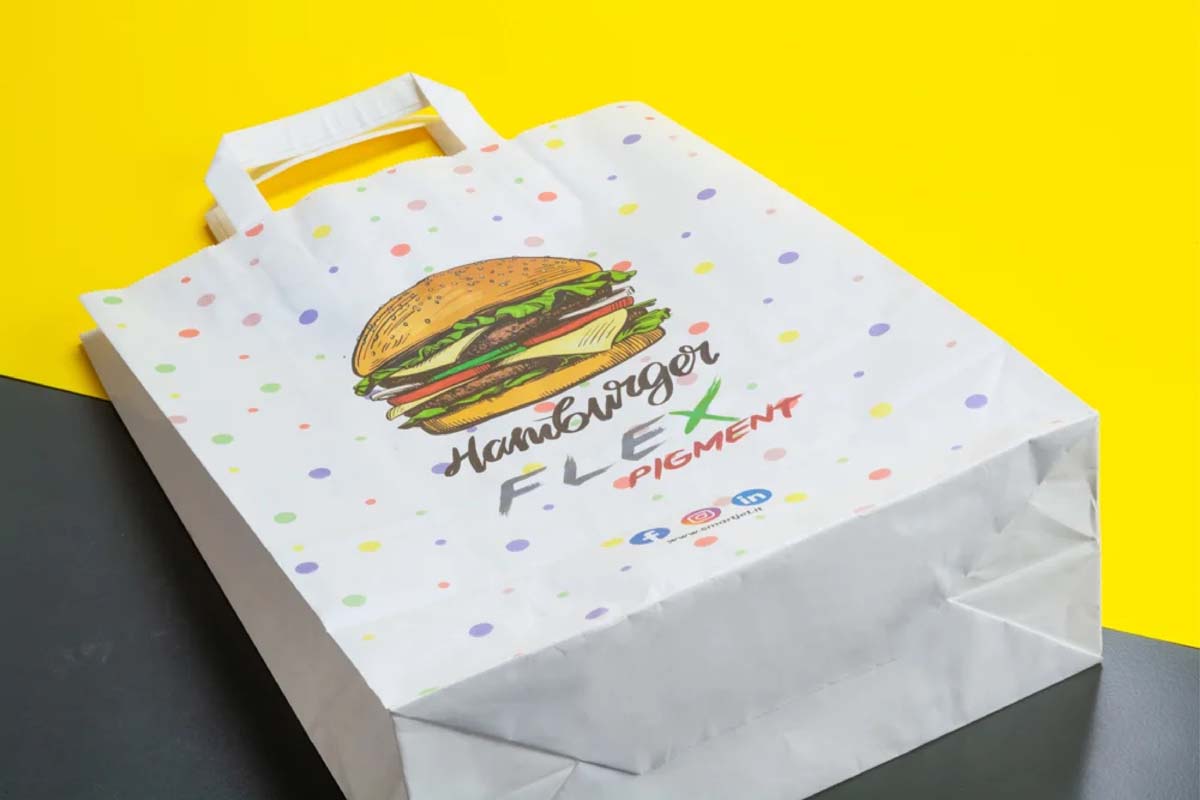

This thermal inkjet printer is for printing onto flat sheets or finished products such as paper bags, burger boxes etc. It’s perfect for on demand production.
Download Brochure

Technical Data:

FLEX ULTRA FLEX 297 FLEX ONE
Dimensions 2930x1400x1900(h) 2930x1400x1900(h) 2930x1400x1900(h)
Weight 580Kg 550Kg 500Kg
Technology Thermal Inkjet Thermal Inkjet Thermal Inkjet
Inks Water Based Water Based Water Based
Printhead HP Pagewide HP Pagewide HP Pagewide
Print Width 297mm 297mm 297mm
Resolution 1200dpi 1200dpi 1200dpi
Print Speed 27mt/min 27mt/min 27mt/min
Media Size >900mm 900mm 900mm
Media Thickness 350mm 350mm 350mm
More Images

Click to enlarge

ArtisJet DTO/DTS

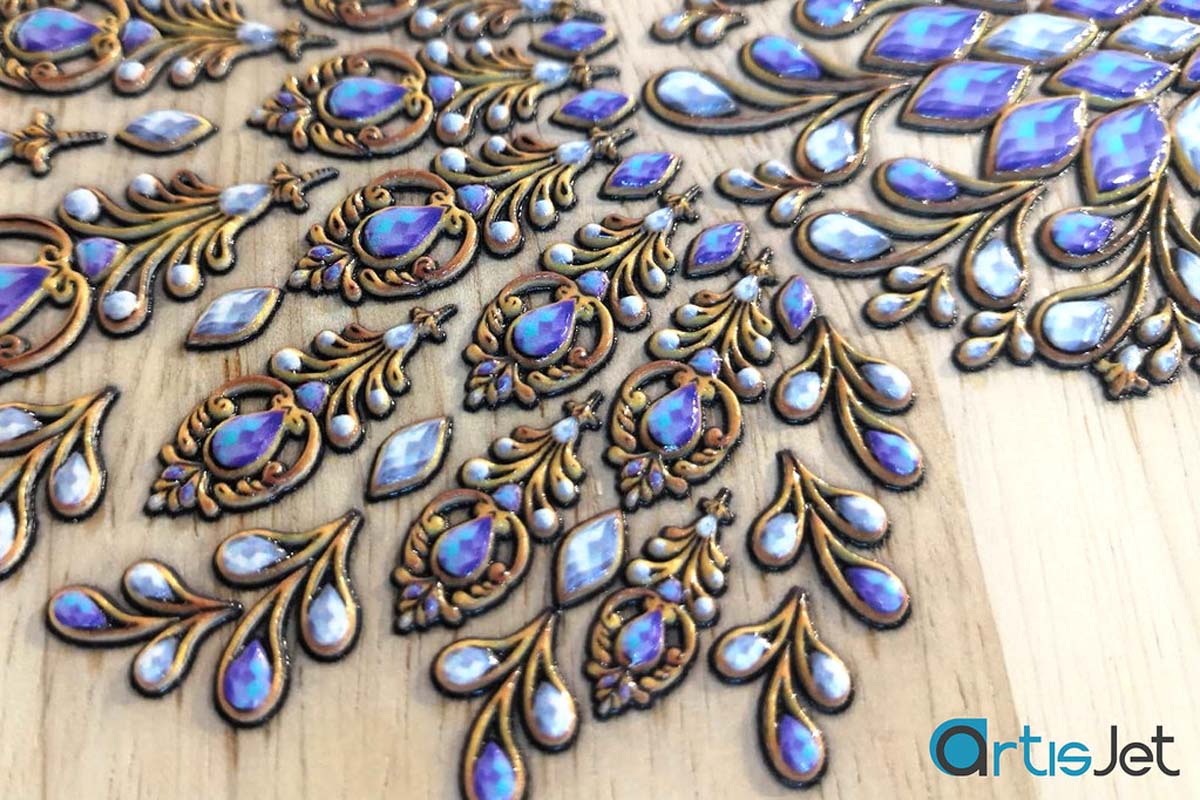

ArtisJet DTO/DTS LED UV Digital Printer (Direct to Surface / Direct to Object printing)

These machines are designed to help you print faster, more accurately, more efficiently and easier with CMYK, Varnish and White onto a range of products and materials. The vacuum table helps keep the products secure on the print bed, and there are a range of optional jigs available to hold uneven products such as pens, golf balls etc, including rotary jigs for cylindrical products such as bottles and candles.

Brochures

ArtisJet Trust
artis 3000U
artis 5000U
More Images

Click to enlarge

PBS S550 Ribbon Inserting machine

PSG RJ Digital Book Edge Printer

This book edge printing machine is designed to print text, patterns, motifs, solid colours etc which are loaded into the machine digitally. The complete printing process runs automatically. The only manual processes are feeding and delivering the book.

Applications:

  • Hardcover blocks with square or rounded backs (pre casing-in)
  • Bindings with dispersion glue (PVA) as well as EVA and PUR
  • Softcover books
  • Publishing editions
  • Books / Notebooks with rounded corners
  • Calendars, diaries and business cards etc

  • Potentially Rigid Boxes can be processed

    • Sewn books must be spine pressed to regulate thickness by removing the swell and air for effective quality printing.
    • Rounding and Backing should be undertaken after Edge Printing.

Features:

  • Built in computer – upload artwork via USB stick
  • Online diagnostics facility
  • Extremely high print speed – up to 1500 books/hour (1 edge)
  • Automatic dust vacuum and brush system to prepare the books for printing
  • Fixed printhead
  • Automatic book height adjustment
  • Automatic parking and cleaning station for when machine is idle
  • Low Ink sensors are fitted as standard
  • Automatic print head protection to avoid damage
  • Waste ink is collected in a tank with level sensor for emptying
  • Conveyor belt to drive books through the printing area
  • Clamp to press thread sewn books to avoid ink penetration

Technical Data

  • Max Print width: 33, 66 or 99mm models available

  • Max book height: 350 mm

  • Print resolution: 1200 dpi

  • Print speed: 0-15m/min

  • Output: up to 1500 books/hour for 1 edge

  • Ink: Water based pigment ink CMYK
    Option: UV ink available – must be advised when ordering

  • Image format: JPG, PDF, PSD, BMP, TIFF, GIF, TGA, EPS etc

  • Operating system: Windows 7, 10 and 11

  • Power supply: Single phase, 220 V – 50/60 Hz (A.C.) 3KW11

  • System dimensions: 190 x 160 x H180 cm (L x W x H)

  • Print system: Epson technology 13200

  • Option: Built-in compressor - please advise for a quote
